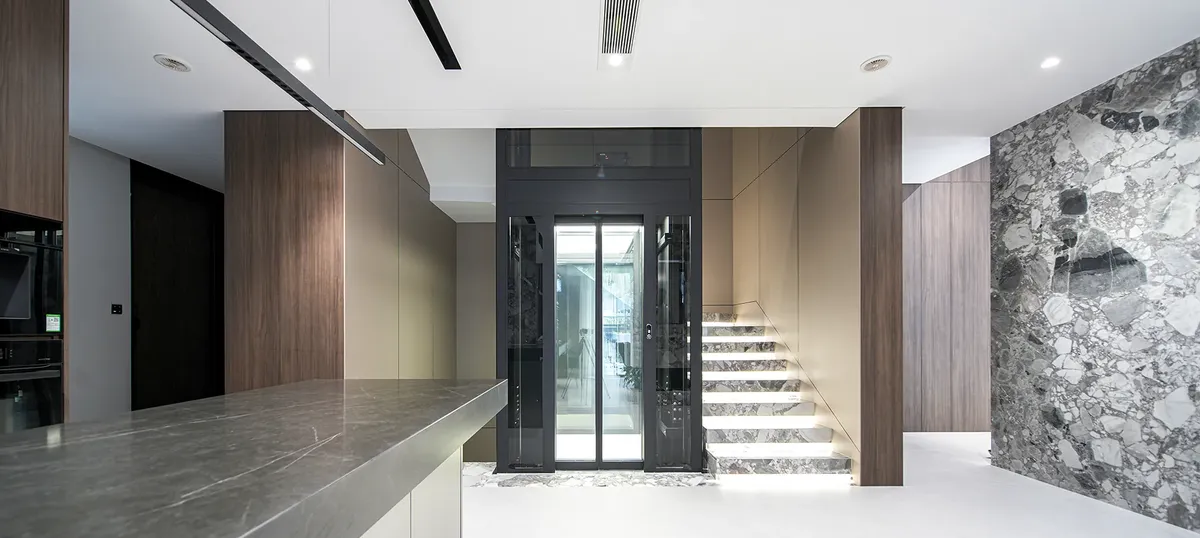

Youjia G1Machine-room-less passenger elevator
No machine room and a pit from 150 mm, so it often sits on the existing slab.
Home elevators, building work included.
Elevators and wheelchair lifts across the Prairies.
Why us
Most elevator companies stop at the doorway.
Suppliers leave the opening, pit, circuit and finishing to you; we do it all under one quote.
Key components available with CSA, UL or CE certification.
What that covers
Our manufacturer
Built by FRANZ, installed by us.
FRANZ designs and builds every model; Newergy surveys the house, builds the shaft, pit and power, then installs, commissions and services it.
at a glance
- 2004
The founding team takes on a German elevator maker’s engineering and factory methods.
- 2008
Eleven villa elevators built for the Dubai royal family.
- 2009
Its first villa elevator with right-angle doors.
- 2013
An elevator co-designed with a German firm goes into service in Germany.
- 2015
TÜV Rheinland certification, and a stand at the Augsburg elevator exhibition.
- 2019
The team launches its new brand, FRANZ.
- 2022
A second plant and its own R&D centre open.
Market
Elevators in Germany, Russia, the UAE, Macau, Indonesia and Vietnam, 70 experience centres in its home market, and now the Canadian Prairies.
Certification

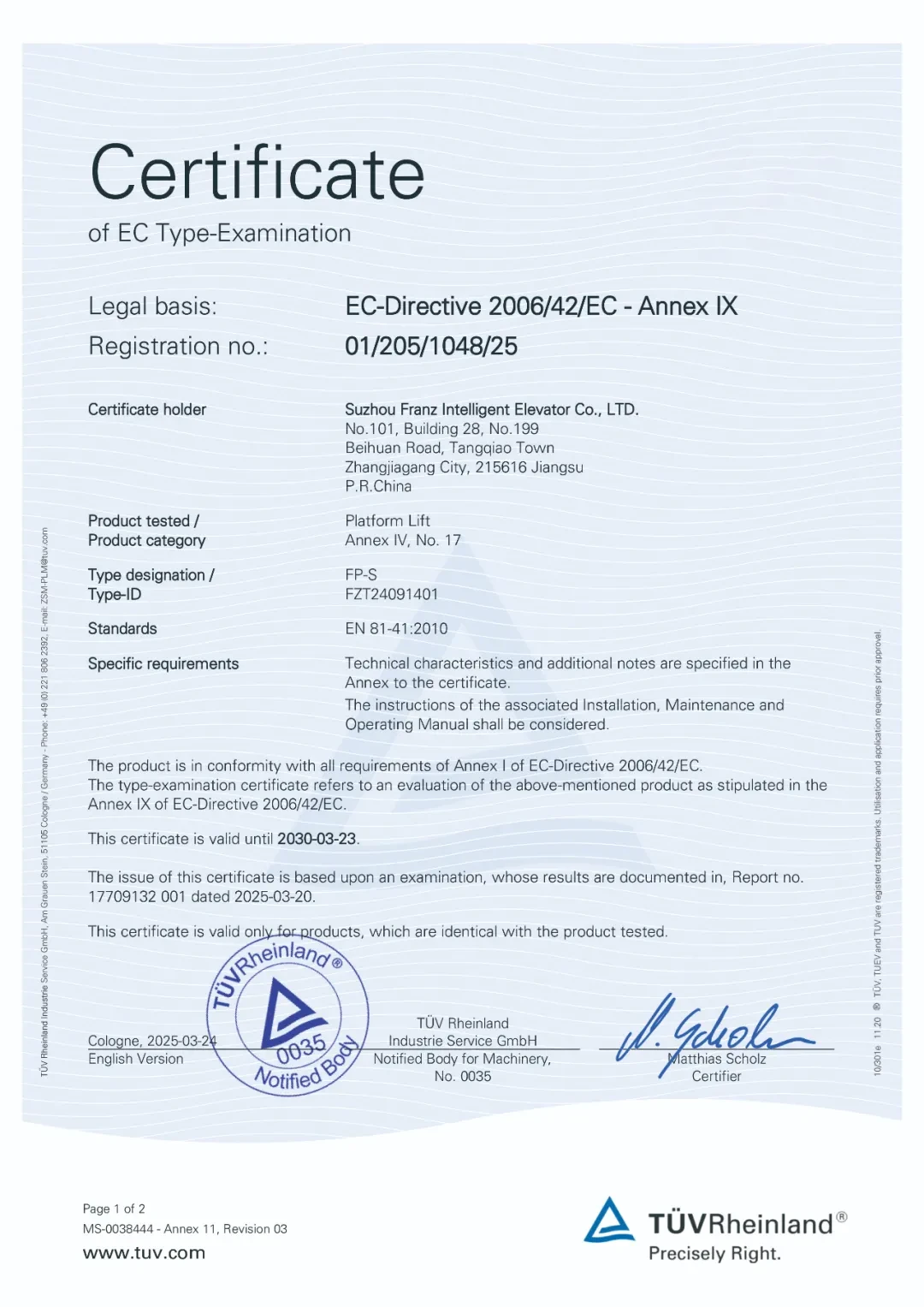

TÜV Rheinland EC type-examination of its platform lift to EN 81-41; motor and controller can carry CSA, UL (cUL) or CE.
TÜV RheinlandEN 81-41Valid to 2030
Strengths
Gearless steel-belt or self-locking screw drives, a quiet control cabinet and cabins made to order.
Company
Patented villa-elevator designs, in-house R&D, and stands at international elevator expos in Augsburg and Shanghai.
The range
Five models for five kinds of house.

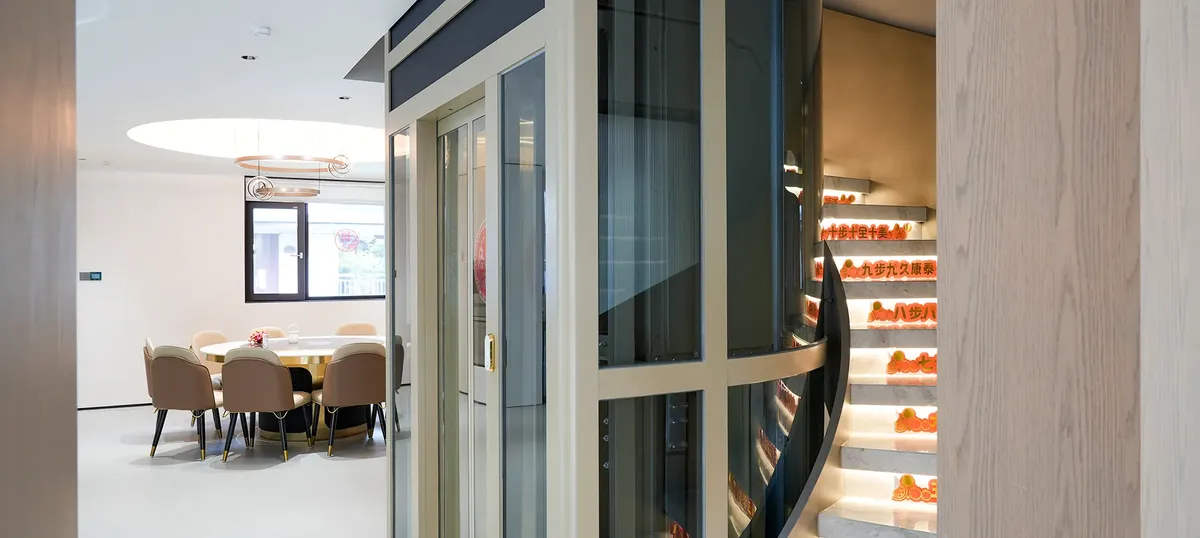

Youjia G2Larger passenger elevator, panoramic cabin available
A larger car for a wheelchair and a companion, with an optional glass cabin.

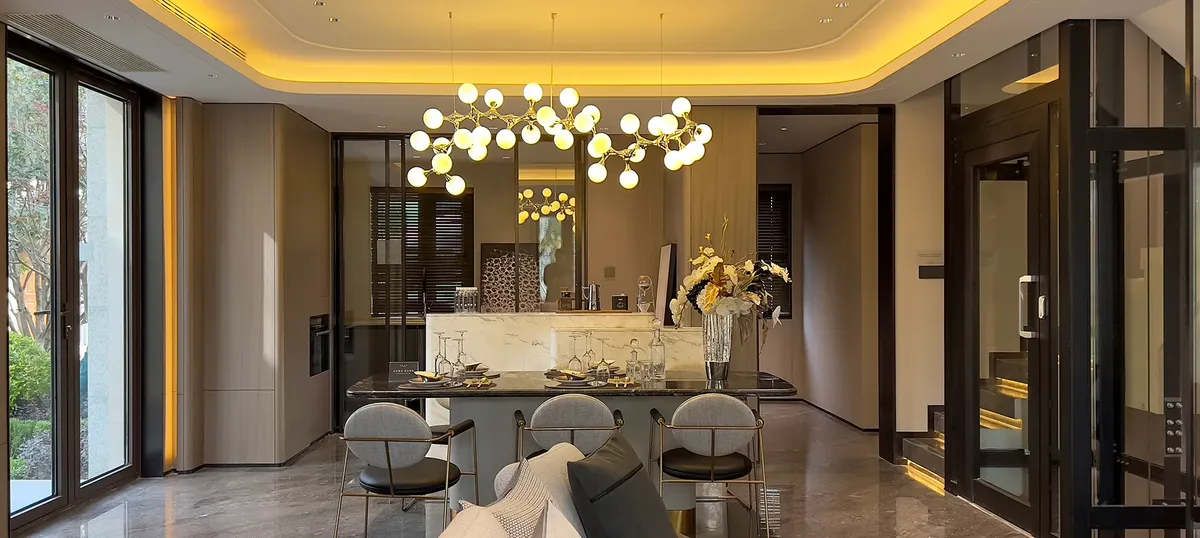

Yijia QCompact elevator for tight retrofits
A self-supporting shaft on about a square metre of floor.

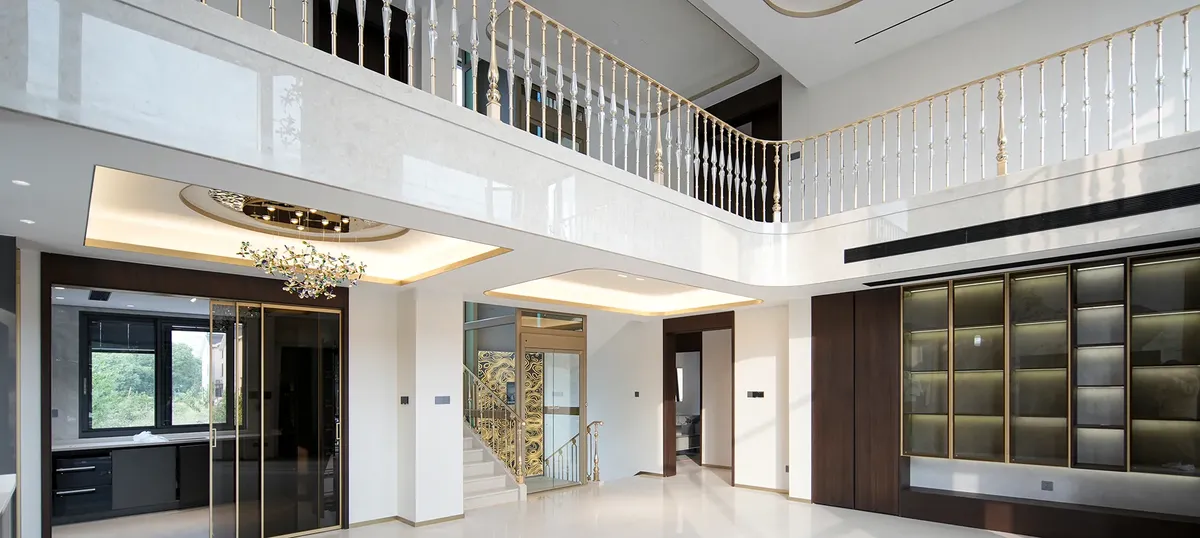

S-LiftOpen platform lift for wheelchair access
A wheelchair platform with a roll-on entry and a self-locking screw drive.

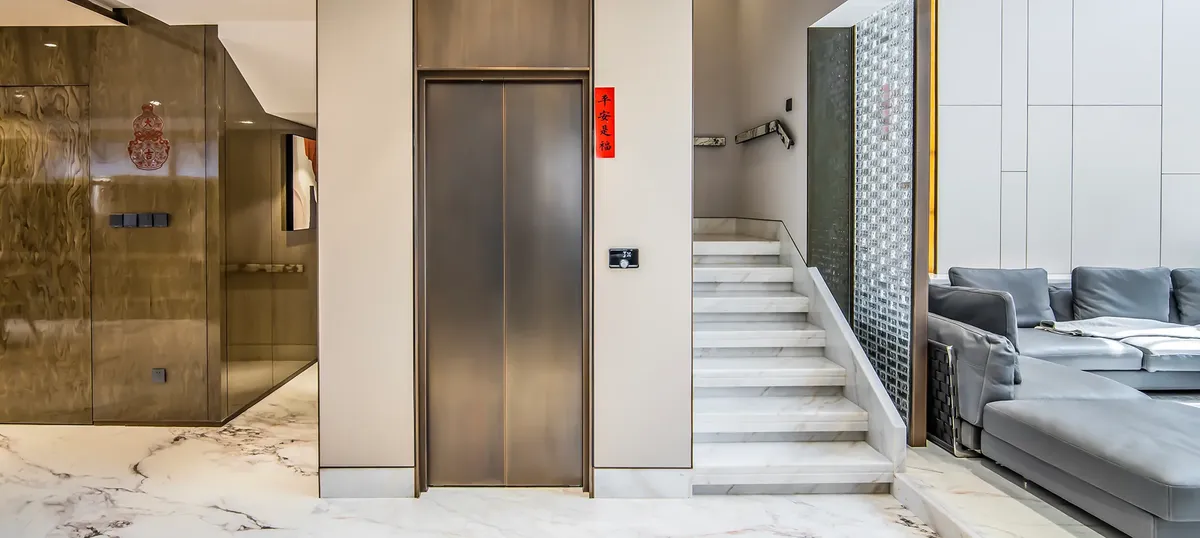

Up-DownTwo-stop through-floor lift, no shaft
Travels through a floor opening: no shaft, no pit, no machine room.
Side by side
What each one asks of the building
| Youjia G1Machine-room-less passenger elevator | Youjia G2Larger passenger elevator, panoramic cabin available | Yijia QCompact elevator for tight retrofits | S-LiftOpen platform lift for wheelchair access | Up-DownTwo-stop through-floor lift, no shaft | |
|---|---|---|---|---|---|
| Rated load | 320 kg (705 lb) | 400 kg (880 lb) | 250 kg (550 lb) | 300 kg (660 lb) | 250 kg (550 lb) |
| Capacity | 3–4 people | 4–5 people | 2–3 people | Wheelchair + companion | 2 people |
| Travel | Up to 15 m (49 ft) | Up to 18 m (59 ft) | Up to 12 m (39 ft) | Up to 9 m (30 ft) | Single floor |
| Stops | 2–6 floors | 2–6 floors | 2–5 floors | 2–4 floors | 2 floors |
| Shaft (minimum) | 1200 × 1200 mm (47 × 47 in) | 1300 × 1350 mm (51 × 53 in) | 1000 × 1050 mm (39 × 41 in) | 1100 × 1400 mm (43 × 55 in) | None — from a 950 × 1000 mm (37 × 39 in) footprint |
| Pit depth | From 150 mm (6 in) | From 150 mm (6 in) | From 100 mm (4 in) | From 60 mm (2.4 in) | None |
| Speed | 0.4 m/s | 0.4 m/s | 0.3 m/s | 0.15 m/s | 0.15 m/s |
| Drive | Gearless traction, steel belt | Gearless traction, steel belt | Gearless traction | Self-locking screw drive | Screw-driven self-supporting column |
| Door | Automatic, side or centre opening | Automatic centre opening, panoramic glass optional | Automatic side opening | Low-threshold gate or swing door | Open platform with safety gate |
Shaft and pit sizes are minimums; local rules may require more. Every model needs a dedicated circuit, which we install.
Every model can have a CSA, UL or CE certified motor and controller.What that covers
How it runs
From survey to first ride
Tell us the house
Floors, where it goes, and whether a wheelchair needs to fit.
Site visit
We measure headroom and pit depth and tell you which models fit.
One quote
Elevator, shaft, pit, circuit, finishing and permits in one price.
Install and hand over
Installed, inspected and commissioned, with maintenance arranged.
FAQ
Questions we get asked first
Can an elevator go into a house that is already built?
Usually, yes; headroom and how much floor can be opened decide the model.
How much digging does the pit need?
It depends on the model: the through-floor lift needs none, and the compact car can often sit on the slab.
Do we need a permit?
Alberta and Saskatchewan exempt home elevators, Manitoba we check first, and we arrange the building and electrical permits.
What power does it need?
A dedicated circuit sized to the model, run under the same contract.
Are your home elevators CSA or UL certified?
The motor and controller can be CSA, UL (cUL) or CE certified, and each model is installed to CSA B44 or B355. What that covers.
Who makes the elevators?
FRANZ builds them, and we install them with the building work.
Where do you install?
Alberta, Saskatchewan and Manitoba.
What happens in a power cut?
The enclosed elevators move to the nearest floor and open the doors.
Who maintains it afterwards?
We do, arranged at handover.
