Larger passenger elevator, panoramic cabin available
Youjia G2 Panoramic Home Elevator
A larger car for a wheelchair and a companion, with an optional glass cabin.
The elevator
What the Youjia G2 is built for
400 kg in a shaft of about 1.3 × 1.35 m: room for a wheelchair and a companion together.
The G1’s drive and shallow pit, with a glass shaft that can stand in the stair hall.
It suits
- A household where a wheelchair user travels with someone

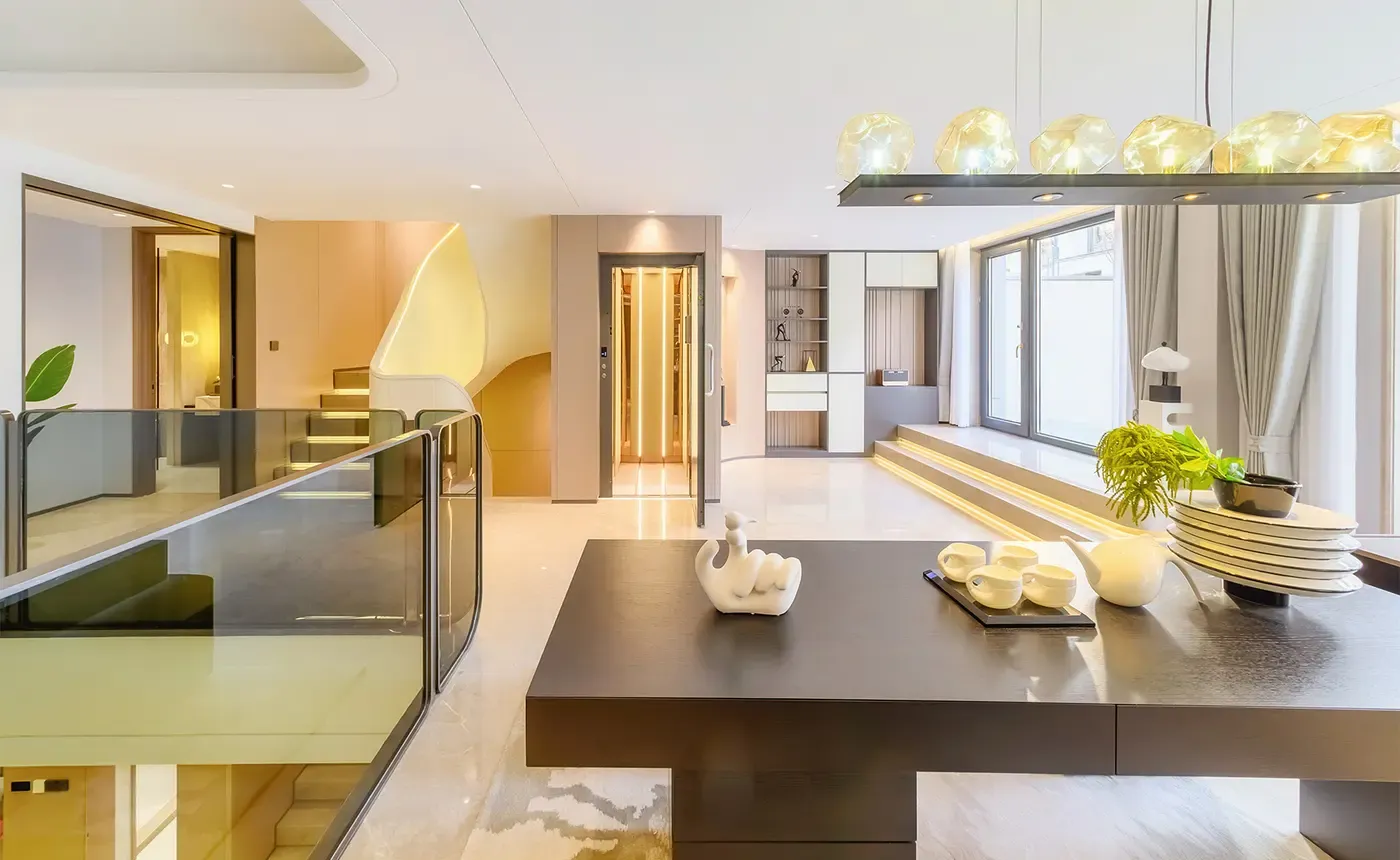

- Stair halls or atriums where the elevator will be on view
- Moving furniture, luggage or equipment between floors
Certified components
Certified motor and controller
Choose CSA, UL (cUL) or CE versions, with the certificates in the quote.
What that covers
Specifications
Youjia G2 at a glance
- Rated load
- 400 kg (880 lb)
- Capacity
- 4–5 people
- Travel
- Up to 18 m (59 ft)
- Stops
- 2–6 floors
- Shaft (minimum)
- 1300 × 1350 mm (51 × 53 in)
- Pit depth
- From 150 mm (6 in)
- Speed
- 0.4 m/s
- Drive
- Gearless traction, steel belt
- Door
- Automatic centre opening, panoramic glass optional
Shaft and pit sizes are minimums; local rules may require more. Every model needs a dedicated circuit, which we install.
FAQ
Youjia G2 questions
What is the difference between the G1 and the G2?
A bigger car, 400 kg (880 lb) against 320 kg (705 lb), with full-height glass on the same drive.
Can a wheelchair and a companion ride together?
Yes, that is the main reason to choose it, and we check the car against the actual chair first.
Does a glass shaft need anything special?
Laminated glazing and a frame detailed as visible architecture, settled at design stage.
Will the Youjia G2 fit your house?
Send the floors and a photo of the space.
